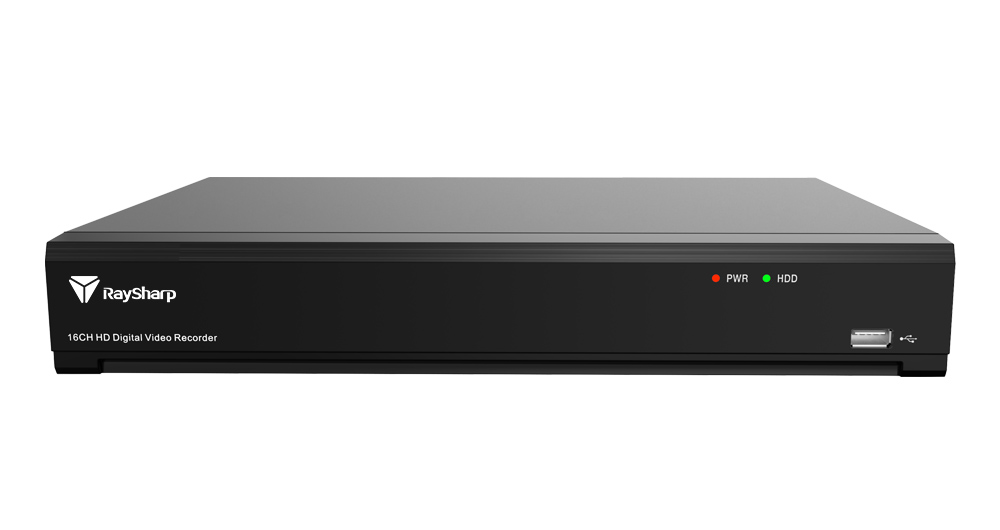

RS-D8016HR-N-T
Return to list page
Record Bandwidth IP Cam Inputs
16Mbps ~32Mbps,IP Bandwidth default is 8Mbps
Recording Resolution out
64Mbps
Display resolution
Analog :5MP-Lite(1280*1944): 12fps;1080N/720P/960H
IP :1080P/720P
Speed
Analog :5MP-Lite(1280*1944): 12fps(each ch)
1080N(960*1080) :15fps(each ch);720P:15fps(each ch)
IP :PAL:25fps(each ch) / NTSC: 30fps(each ch)
Playback
5MPlite:90fps（Max 6CH playback）;
1080P: 160fps（Max 8CH playback）;
720P:320fps Max 8CH playback）
Internal HDD
1 SATA HDD, up to 10TB
Alarm Input/out
N/A
300X227X53mm
Operating Temperature/Humidity
Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RH
| Model Name | RS-D8016HR-N-T | |
| Recording Bandwidth | Inputs | 16Mbps ~32Mbps,IP Bandwidth default is 8Mbps, |
| out | 64Mbps | |
| Analog video-input | 16CH inputs | |
| Live | IP Video Input | 4ch,(only IP up to 20ch) |
| Composite Video Input | up to 20 ch (Analog video + IP video) | |
| Performance | ||
| Recording and Playback | Compression | Audio: G.711a ;Video : H.264/H.265 |
| Display resolution |
Analog :5MP-Lite(1280*1944): 12fps;1080N/720P/960H IP :1080P/720P |
|
| Speed |
Analog :5MP-Lite(1280*1944): 12fps(each ch)1080N(960*1080) :15fps(each ch);720P:15fps(each ch) IP :PAL:25fps(each ch) / NTSC: 30fps(each ch) |
|
| Event |
MD(Sensitivity Level 1~8) Videlo lossBeep, Email, Push notification to Mobile APP |
|
| Playback function |
Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
|
| Playback | 5MPlite:90fps （Max 6CH playback）;1080P: 160fps（Max 8CH playback）;720P:320fps Max 8CH playback） | |
| P/W Reset | Factory Reset : Press 10 seconds | |
| Monitors | BNC | N/A |
| VGA | N/A | |
| HDMI | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ,EDID） | |
| Ethernet | 1 RJ45 10/100Base-T | |
| USB | USB2.0*2(front) | |
| Audio | N/A | |
| E-sata | N/A | |
| HDD | 1 SATA HDD, up to 10TB | |
| RS485 | N/A | |
| Alarm Input/out | N/A | |
| General | ||
| Mechanical design | Dimension (WxDxH) | 300X227X53mm |
| Electrical | Input Voltage/Current | DC12V/2A |
| Power consumption (excluding hard disk) | 8W | |
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (32°F ~ 104°F) ,Humidity : Less than 90%RH |
