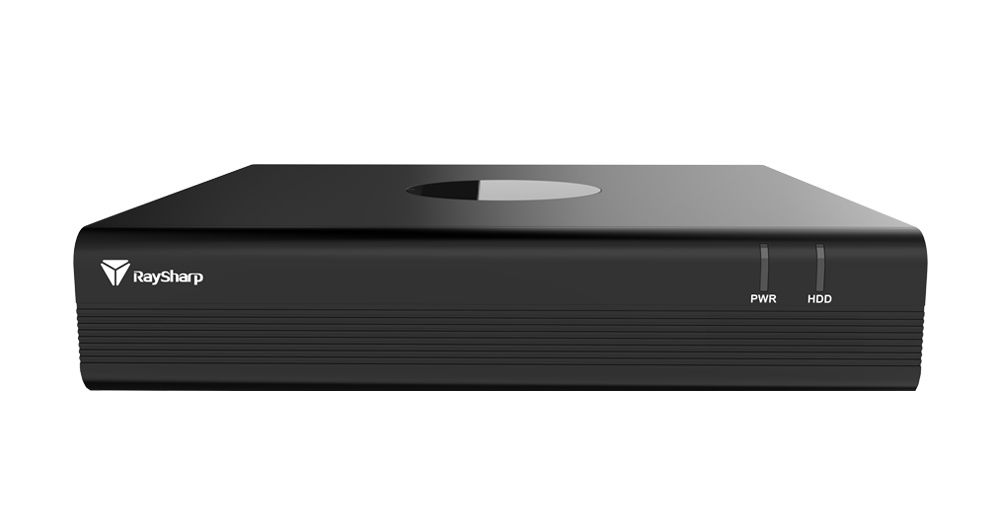

RS-D8004/D8008AS-N-T
Return to list page
Record Bandwidth IP Cam Inputs
8Mbps ~40Mbps,IP Bandwidth max is 8Mbps
Recording Resolution out
56Mbps
Display resolution
Analog : 5MP-Lite: 12fps(each ch),1080N(960*1080) :30fps(each ch),720P:30fps(each ch)
IP:PAL:25fps(each ch) / NTSC: 30fps(each ch)
Speed
Analog:5MP-Lite(1280*1944): 12fps(each ch)
1080P(1920*1080) :15fps(each ch)
1080N(960*1080) :30fps(each ch),720P:30fps(each ch)
IP : PAL:25fps(each ch)/NTSC: 30fps(each ch)
Playback
5MPlite:48fps ,1080P: 60fps ,720P:120fps(Max 4CH playback)
Internal HDD
1 SATA HDD, up to 10TB
Alarm Input/out
N/A
230*215*47mm
Operating Temperature/Humidity
Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RH
| Model Name | RS-D8004AS-N-T | RS-D8008AS-N-T | |
| Recording Bandwidth | Inputs |
4Mbps ~20Mbps, IP Bandwidth deful is 4Mbps |
8Mbps ~40Mbps,IP Bandwidth max is 8Mbps |
| out | 32Mbps | 56Mbps | |
| Analog video-input | 4CH inputs | 8CH inputs | |
| Live | IP Video Input | 1ch,(only IP up to 5ch) | 2ch,(only IP up to 10ch) |
| Composite Video Input | up to 5 ch (Analog video + IP video) | up to 10 ch (Analog video + IP video) | |
| Performance | |||
| Recording and Playback | Compression | Audio: G.711a ;Video : H.264/H.265 | |
| Display resolution |
Analog : 5MP-Lite:20fps ,4MP-Lite:30 fps,1080P/720P/960H:30fps IP:1080P/720P |
Analog : 5MP-Lite: 12fps(each ch),1080N(960*1080) :30fps(each ch),720P:30fps(each ch) IP:PAL:25fps(each ch) / NTSC: 30fps(each ch) |
|
| Speed |
Analog:5MP-Lite:20fps (each ch), 4MP-Lite:30fps(each ch), 1080P/720P:PAL:25fps(each ch)/NTSC:30fps(each ch) IP : PAL:25fps(each ch)/NTSC: 30fps(each ch) |
Analog:5MP-Lite(1280*1944): 12fps(each ch) 1080P(1920*1080) :15fps(each ch) 1080N(960*1080) :30fps(each ch),720P:30fps(each ch) IP : PAL:25fps(each ch)/NTSC: 30fps(each ch) |
|
| Event |
MD(Sensitivity Level 1~8) Videlo lossBeep, Email, Push notification to Mobile APP |
||
| Playback function |
Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
||
| Playback | 5MPlite:80fps ,4MPlite: 120fps ,1080P: 120fps,720P:120fps | 5MPlite:48fps ,1080P: 60fps ,720P:120fps(Max 4CH playback) | |
| P/W Reset | Factory Reset : Press 10 seconds | ||
| Monitors | BNC | N/A | |
| VGA | N/A | ||
| HDMI | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ,EDID） | ||
| Ethernet | 1 RJ45 10/100Base-T | ||
| USB | USB2.0*2(front) | ||
| Audio | N/A | ||
| E-sata | N/A | ||
| HDD | 1 SATA HDD, up to 8TB | ||
| RS485 | N/A | ||
| Alarm Input/out | N/A | ||
| General | |||
| Mechanical design | Dimension (WxDxH) | 230*215*47mm | |
| Electrical | Input Voltage/Current | DC12V/2A | |
| Power consumption (excluding hard disk) | 3.6W | 4W | |
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (32°F ~ 104°F) ,Humidity : Less than 90%RH | |
