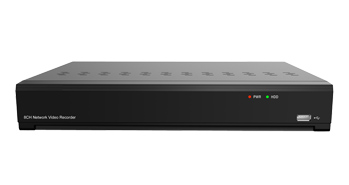

RS-D8116GR-N-T

Return to list page
  • RS-D8116GR-N-T
  • Features
  • specification
  • download

Record Bandwidth IP Cam Inputs

32Mbps ~48Mbps
Analog channel and digital channel can be converted
Encoding performance and decoding performance cannot be converted
Total  decoding performance 1080P 120fps

Recording Resolution  out

96Mbps

Display resolution

Analog :  5MP-Lite:20fps
4MP-Lite:30 fps
1080P/720P/960H:30fps
IP :  5MP/4MP/1080P/720P
Single  channel preview up to 2MP  30 fps
multi-channel  preview only substream

Speed

Analog : 5MP-Lite:12fps (each ch)
4MP-Lite:16fps(each ch)
1080P:15fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP : PAL:25fps(each ch)/NTSC: 30fps(each ch)
The sub-stream frame rate is less than the preview frame
H.264 performance is about 20% lower than H.265

Playback

1080P:120fps
Max8CH playback

Internal HDD
1 SATA HDD, up to 10TB  default ( (Design reserved 2HDD or 1HDD+1ESATA),

Dimension(W×D×H)

380X340X50mm

Operating Temperature/Humidity
Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RH

Model Name RS-D8116GR-N-T
Recording Bandwidth Inputs  32Mbps ~48Mbps
Analog channel and digital channel can be converted
Encoding performance and decoding performance cannot be converted
Total  decoding performance 1080P 120fps
out 96Mbps
Analog video-input  16CH inputs
Live IP Video Input 8ch,(only IP up to 24ch)
Composite Video Input  up to 24ch (Analog video + IP video)
Performance
Installation wizard   Yes
Recording and Playback Compression  Audio: G.711a
Video : H.264/H.265
Display resolution Analog :  5MP-Lite:20fps
4MP-Lite:30 fps
1080P/720P/960H:30fps
IP        :  5MP/4MP/1080P/720P
Single  channel preview up to 2MP  30 fps
multi-channel  preview only substream
Speed
Analog :   5MP-Lite:12fps (each ch)
4MP-Lite:16fps(each ch)
1080P:15fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP       : PAL:25fps(each ch)/NTSC: 30fps(each ch)
The sub-stream frame rate is less than the preview frame
H.264 performance is about 20% lower than H.265
Event MD(Sensitivity Level 1~8)
Videlo loss
Beep, Email,
Push notification to Mobile APP
Playback function  Fast forward / backward (2x, 4x, 8x,16x)
Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback 1080P:120fps
Max8CH playback
UI/Monitoring Local UI5.0
WEB IE10/11
Safari  V12.1 above
Firefox V.52 above
Google chrome  V.57 above
Edge V.79 above
Mobile viewer Rxcamview
Push N/Atification TUTK/RS
Interface Voice command Home Device : Google Assistant, Amazon Alexa
P/W Reset   Factory Reset : Press 10 seconds
Monitors BNC 1 (704*576)
VGA  1(1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 )
HDMI 1(1024*768,1280*720,1280*1024,1440*900,
1920*1080,2560*1440(2K),3840*2160(4K))
  Ethernet  1 RJ45 100/1000 Base-T
USB  USB2.0*1(front)
USB3.0*1+(rear)
Audio  4 in / 1 out   (Max16 in /1 out  optional,)
E-sata 1 optional, not supported by default
HDD 1 SATA HDD, up to 10TB  default ( (Design reserved 2HDD or 1HDD+1ESATA),
RS485 1
Alarm Input/out 16 in /1 out  optional, not supported by default
General
OSD Language   More
Mechanical design Dimension (WxDxH) 380X340X50mm
Electrical Input Voltage/Current 1HDD:DC12V/2A
2HDD:DC12V/5A
Power consumption (excluding hard disk)
Environmental Operating Temperature/Humidity Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RH
