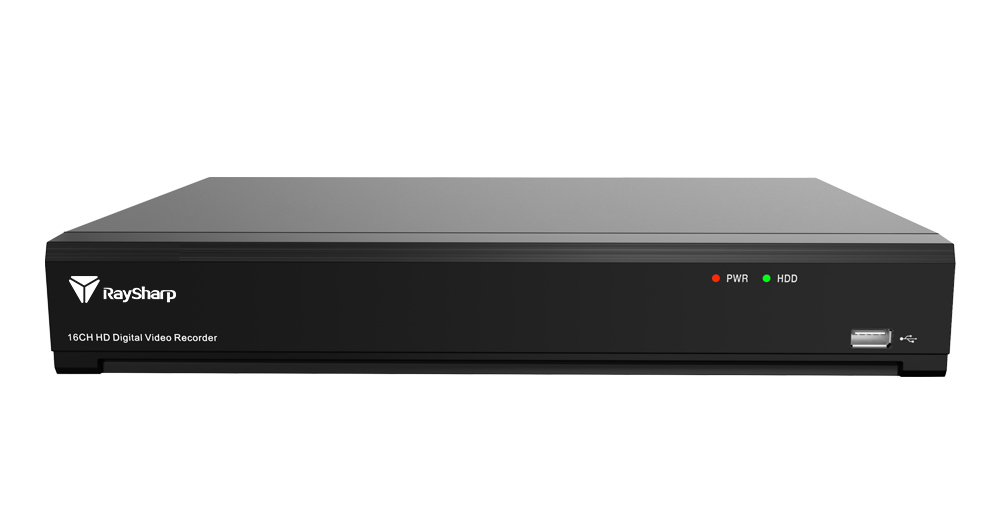

RS-D7116GR-N-T
Return to list page
Record Bandwidth Inputs
16Mbps ~24Mbps
Recording Resolution out
192Mbps
Display resolution
Analog: 8MP（15fps）, 5MP（20fps）, 4MP/1080P/720P/960H（ 30fps）
IP: 4K/4MP/1080P/720P
Speed
Analog :8MP:10fps(each ch); 5MP:14fps(each ch);4MP:18fps(each ch);
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP: PAL:25fps(each ch)/NTSC: 30fps(each ch)
8MP: 75fps (Max 4CH playback);
5MP: 112fps(Max 8CH playback)
4MP: 144fps(Max 8CH playback);
1080P: 240fps (Max 8CH playback)
Audio
4 in / 1 out (Max 8 in /1 out optional,)
E-sata
1 optional, not supported by default
Internal HDD
2 SATA HDD, up to 10TB default (Design reserved 2HDD)
Alarm Input/out
16 in /1 out optional, not supported by default
Dimension(W×D×H)378X340X50mm
Operating Temperature/Humidity
Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RH
| Model Name | RS-D7116GR-N-T | |
| Recording Bandwidth | Inputs | 48Mbps |
| out | 128Mbps | |
| Analog video-input | 16CH inputs | |
| Live | IP Video Input | 8ch |
| Composite Video Input | up to 24ch (Analog video + IP video) | |
| Performance | ||
| Recording and Playback | Compression | Audio: G.711a , Video : H.264/H.265 |
| Display resolution | Analog: 8MP（15fps）; 5MP（20fps）; 4MP/3MP/1080P/720P/960H（ 30fps） IP: 8MP/4MP/3MP1080P/720P | |
| Speed |
Analog: 8MP:10fps(each ch); 5MP:15fps(each ch); 4MP:20fps(each ch); 1080P: PAL:25fps(each ch)/NTSC:30fps(each ch) IP: PAL:25fps(each ch)/NTSC: 30fps(each ch) |
|
| Event |
MD(Sensitivity Level 1~8) Videlo loss Beep, |
|
| Playback function |
Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
|
| Playback |
8MP: 120fps(Max 12CH playback); 5MP: 240fps(Max 16CH playback) 4MP: 320fps(Max 16CH playback); 1080P: 480fps(Max 16CH playback) |
|
| Intelligent | PID, LCD, PD&VD,FR | |
| P/W Reset | Factory Reset : Press 10 seconds | |
| Monitors | BNC | 1 (704*576) |
| VGA | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ） | |
| HDMI | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID） | |
| Ethernet | 1 RJ45 100/1000 Base-T | |
| USB | USB2.0*1(front),USB2.0*1+(rear) | |
| Audio | 4 in / 1 out (Max 16 in /1 out optional) | |
| E-sata | 1 optional, not supported by default | |
| HDD | 2 SATA HDD, up to 8TB (Max 4HDD) | |
| RS485 | 1 | |
| Alarm Input/out | 16 in /1 out optional, not supported by default | |
| General | ||
| Mechanical design | Dimension (WxDxH) | 378x340x50mm |
| Electrical | Input Voltage/Current | 2HDD:DC12V/5A /4HDD DC12V/6A |
| Power consumption (excluding hard disk) | ≤20W | |
| Environmental | Operating Temperature/Humidity | Temperature: -10°C~+50°C (32°F ~ 104°F), Humidity: Less than 90%RH |
